Model a Polygonal ELEPHANT



For this tutorial you need a good Knowledge of the Maya Tools:
Level: Intermediate
MODELING

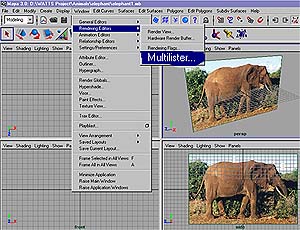

Windows/ Rendering editor/ Multilister
Choose Cameras
Options: Environment
  -Image Plane/ Create
  -Image Name: opens image
  -Open
-Display: Looking through camera
Go to side view:
Polygon/ Create Polygon Tool

Trace the picture (Animalís profile)
Trace only one set of legs
Press Enter to close the shape

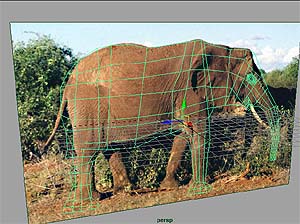

Edit Polygon/ Split Polygon Tool:
 -Split in half horizontal

-Split vertical everywhere

Go to perspective view
Go vertex mode
Start pulling/ pushing vertices
Do not move the outline! (for mirror action later)



TEXTURE:

In the HyperShade create a Lambert Material
Retouch the Profile Texture in Photoshop to get only skin
Assign texture to model

MAPPING:
Go face mode to adjust mapping select all faces
Edit polygons/ Texture/ Planar mapping
Move the handles to adjust mapping
Now you have a Low Polygon Elephant
Use the Polygon/Mirror Geometry to duplicate the other half

Use the Merge Edges tool and wireframe mode to connect both sides.

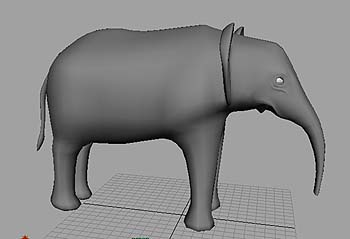

Use Polygon/Smooth to smooth out your model

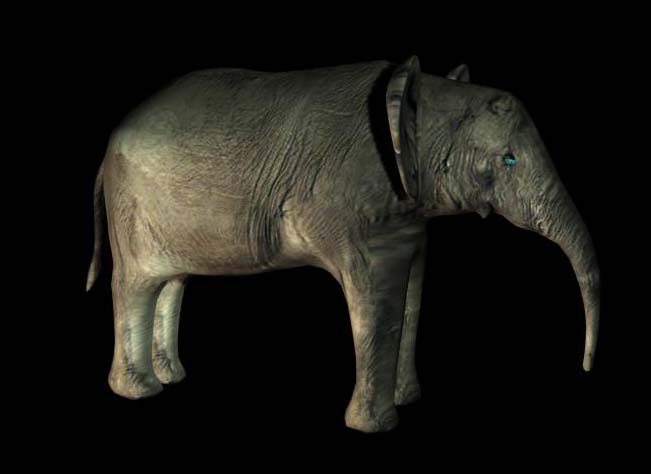

Put some lights in, Render!


That's it! You're done!!!




Good Luck.


Martine.
